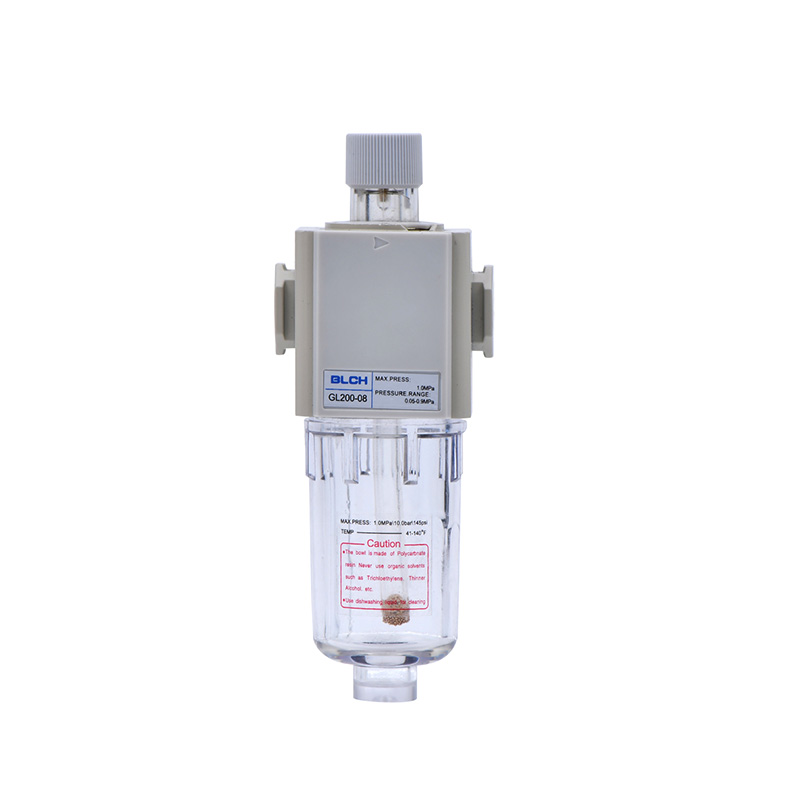

Air preparation G series Air Lubricator

Share to:

1.The Air preparation G series Air Lubricator is a high-performance lubricator designed for use in industrial applications. This product provides a precise and reliable way to lubricate pneumatic components and maintain smooth and reliable operation of equipment.

2.The features a micro-fog lubrication system that ensures consistent and reliable lubrication of pneumatic components. It also has a modular design that allows it to be easily integrated with other FRL (Filter-Regulator-Lubricator) products.

3. Built with high-quality materials, the is durable and long-lasting, with a robust construction that can withstand harsh industrial environments. It also features an easy-to-adjust oil flow rate and a sight dome for easy oil level monitoring.

Availability:



Inquire

Product Description

Overall Dimension(mm)

Model	A	B	BA	BC	C	K	KA	KB	KC	P	PA
GL2 00-06	47	50	30	40	119	5.5	27	15.5	23	PT1/8	80
GL200-08	47	50	30	40	119	5.5	27	15.5	23	PT1/4	80
GL300-08	60	68	41	53.5	169	6.5	40	8	27	PT1/4	125
GL300-10	60	68	41	53.5	169	6.5	40	8	27	PT3/8	125
GL300-15	60	68	41	53.5	169	6.5	40	8	27	PT1/2	125
GL400-10	80	85.5	50	71	190	8.5	55	11	33.5	PT3/8	142
GL400-15	80	85.5	50	71	190	8.5	55	11	33.5	PT1/2	142

Product Feature
1.The structure of oil dripping adopts gap seal type, which makes the adjustment of oil supply more reliable.
2. Oil feed ring can only make one full turn. The quantity of oil supply basically takes on linear distribution. The quantity of oil supply can be generally calculated according to the positon of graduation ring.
3. Special drip nozzle structure will produce negative pressure in oil dripping outlet and mist flow is minimal.

Ordering code

MODEL:	GL300-10

G	L	300	_	10
Series code	Funcation	Body size		Port size
	Lubricator	200		06: 1/8
		300		08: 1/4
		400		10：3/8
				15: 1/2

Specification

Model		GL200-06	GL200-08	GL300-08	GL300-10	GL300-15	GL400-10	GL400-15
Port size PT		1/8″	1/4″	1/4″	3/8″	1/2″	3/8″	1/2″
Max. Flow L/min(ANR)		3500	3500	5000	5000	5000	8000	8000
Lubricator bowl capacity (CC)		25	25	75	75	75	160	160
Working pressure Range		0.15-0.9 Mpa
Max pressure (Mpa)		1.0 MPa
Ambient temperature		-5~60℃
Recommended oil:		Turbine NO.1 oil (ISOVG32)
Material of main part	Body	Aluminum alloy
	Bowl	PC
	Bowl guard	GL200 : without , GL300~ GL400: With (Iron)
