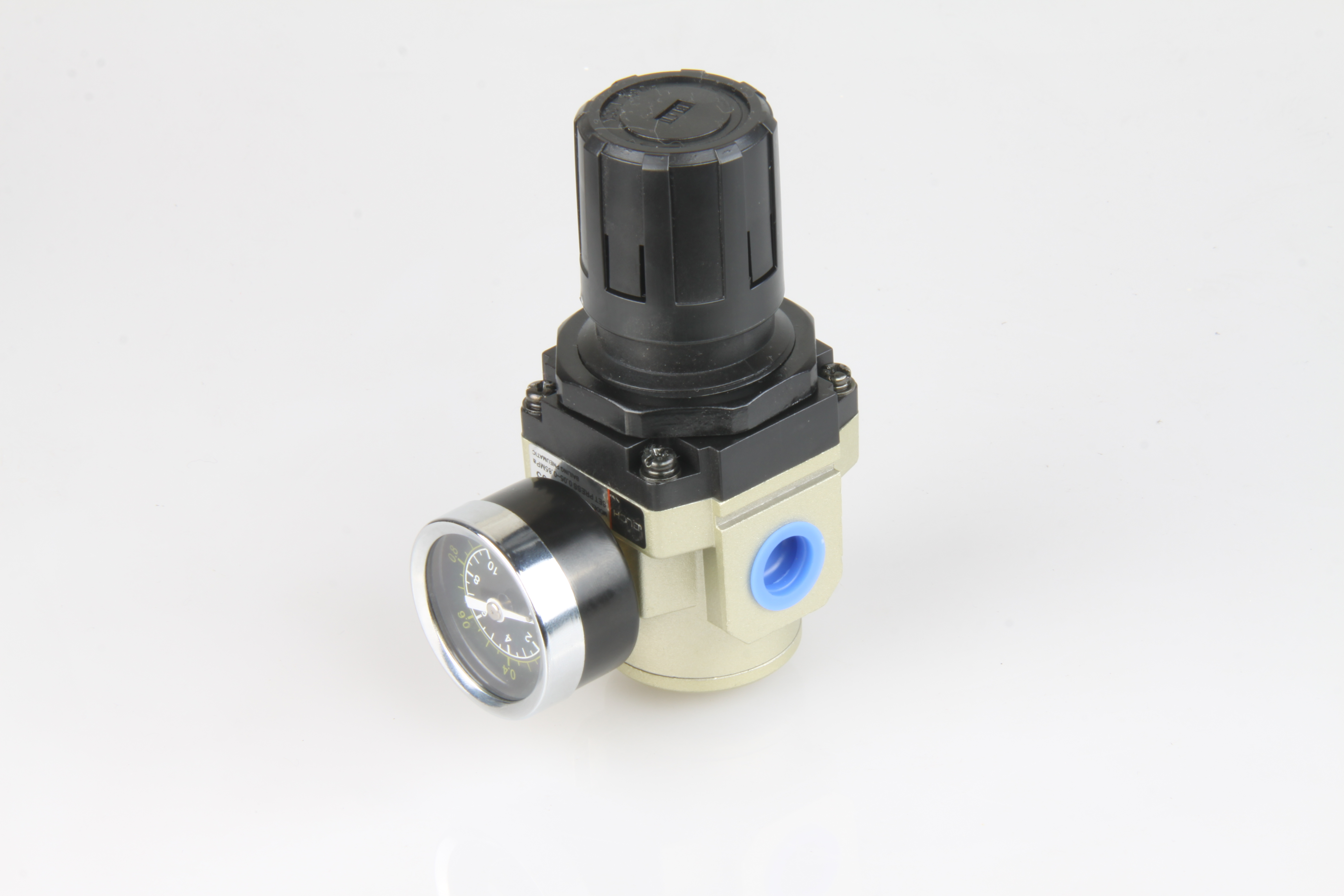

Air preparation AR series Air regulator

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:
Inquire

Ordering code

MODEL: AR3000-03D

A R 3000 _ 03
Series code Funcation Body size
Port size



1000
M5: M5


Regulator 2000
01: 1/8



3000
02: 1/4



4000
03：3/8



5000
04: 1/2





06：3/4





10 : 1″

Specification

Model AR1000-M5 AR2000-01 AR2000-02 AR3000-02 AR3000-03 AR4000-03 AR4000-04 AR4000-06 AR5000-06
AR1000-M5D AR2000-01D AR2000-02D AR3000-02D AR3000-03D AR4000-03D AR4000-04D AR4000-06D AR5000-06D
Port size   Rc(G) M5 x 0.8 1/8″ 1/4″ 1/4″ 3/8″ 3/8″ 1/2″ 3/4″ 3/4″
Pressure gauge port size M5 x 0.8 1/8″ 1/8″ 1/8″ 1/8″ 1/4″ 1/4″ 1/4″ 1/4″
Pressure gauge Y20 Y40 Y40 Y40 Y40 Y50 Y50 Y50 Y50
Max. Flow L/min(ANR) 100 550 550 2500 2500 6000 6000 6000 80000
Working pressure Range 0.15-0.7 Mpa 0.15-0.85 Mpa
Max pressure (Mpa) 1.0 MPa
Ambient  temperature  - 5~60℃
Body material Aluminum alloy

 Overall Dimension

002 Model A B C
AR1000-M5 25 60 25
AR2000-01/02 40 92 40
AR3000-02/03 53 123 53
AR4000-03/04 70 146 70
AR4000-06 76 150 70
AR5000-06/10 90 165 90
