FEATURES：
1. The Red Service Indicator will rise when filter element needs to be changed.
2. Desiccant beads change color from blue to pink when they need to be changed or reactivated.
3. 0.01μ filter element removes 99.9% of oil vapor particles.
4. Clear bowl with metal guards provides easy viewing for contents as well as providing impact protection.
5. Quick release bowl for easy maintenance
6. An additional filter after desiccant beads to insure clean downstream air.
FUNCTION：
1. Coalescing filter removes oil vapors, which can get past standard filters and water separators.
2. Desiccant dryer reduces humidity in compressed air lines, a MUST HAVE for paint spraying operations.
APPLICATION：
1. Paint Spray Gun (gravity, siphon, and pressure feed styles)
2. Air measuring instruments (requiring clean, dry air)
RECOMMENDATIONS：
1. It is recommended to install a standard air filter/water separator in front of the air cleaner / dryer to remove larger
debris (>5μ) and condensed water.
2. It is also recommended to have a shutoff valve upstream of the air cleaner / dryer for easy depressurization for service.
Overall Dimension(mm)
Ordering code
| MODEL: | SL-200 | |
| S | L | 200 |
| Series code | Funcation | Body size |
| L | 200 | |
| 300 | ||
| 400 | ||
Specification

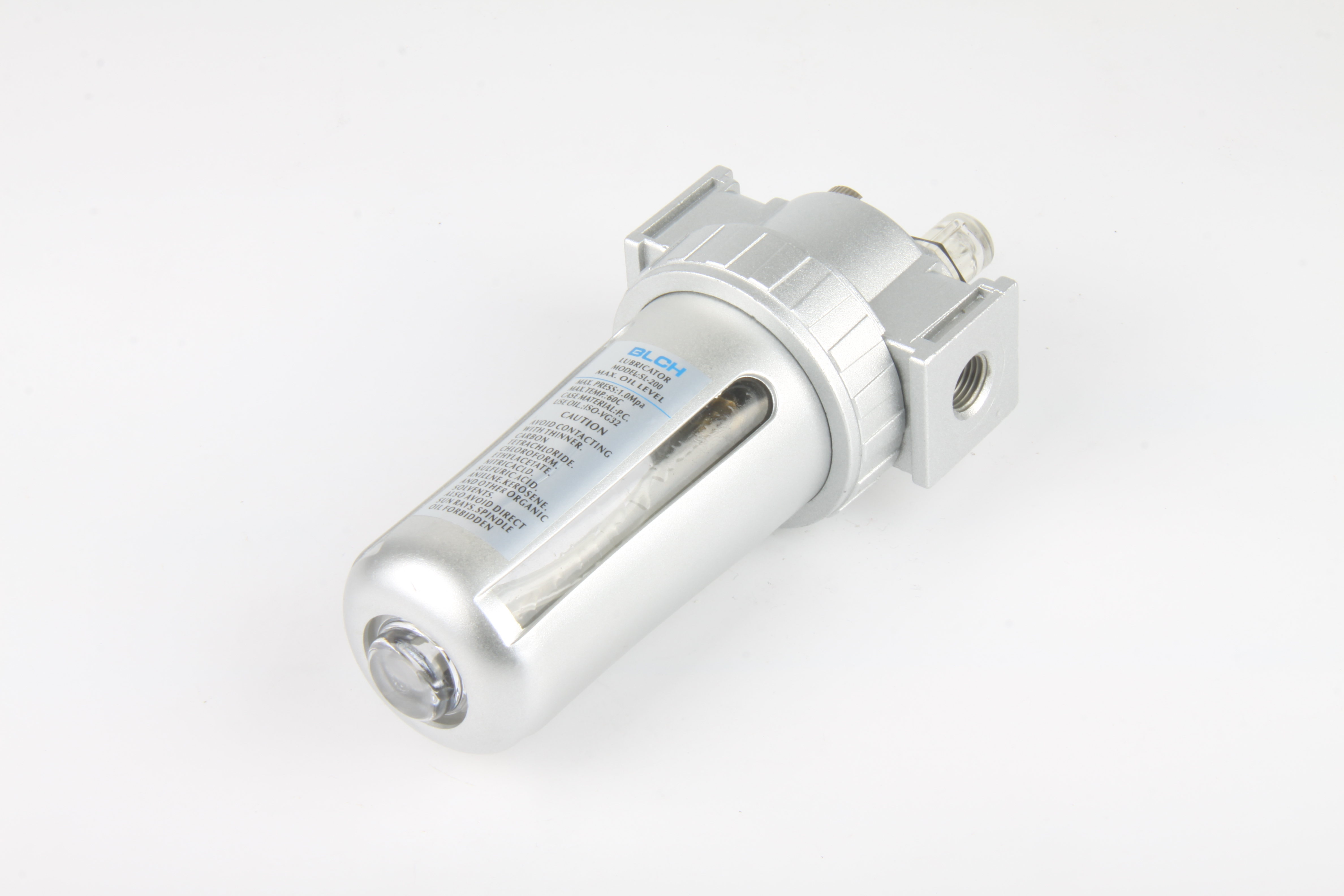

Model | SL-200 | SL-300 | SL-400 | |
| Lubricator | SL-200 | SL-300 | SL-400 | |
| Port size Rc(G) | 1/4″ | 3/8″ | 1/2″ | |
| Pressure gauge port size | 1/4″ | 1/4″ | 1/4″ | |
| Pressure gauge | Y50 | Y50 | Y50 | |
| Working medium | Air | |||
| Working pressure Range | 0.15-0.85 Mpa | |||
| Max pressure (Mpa) | 1.0 MPa | |||
| Ambient temperature | - 5~60℃ | |||
| Filter accuracy | 40um ( standard) 5um (option) | |||
| Recommended oil: | Turbine NO.1 oil (ISOVG32) | |||
Material of main part | Body | Aluminum alloy | ||
| Bowl | PC | |||
| Bowl guard | Plastic | |||
