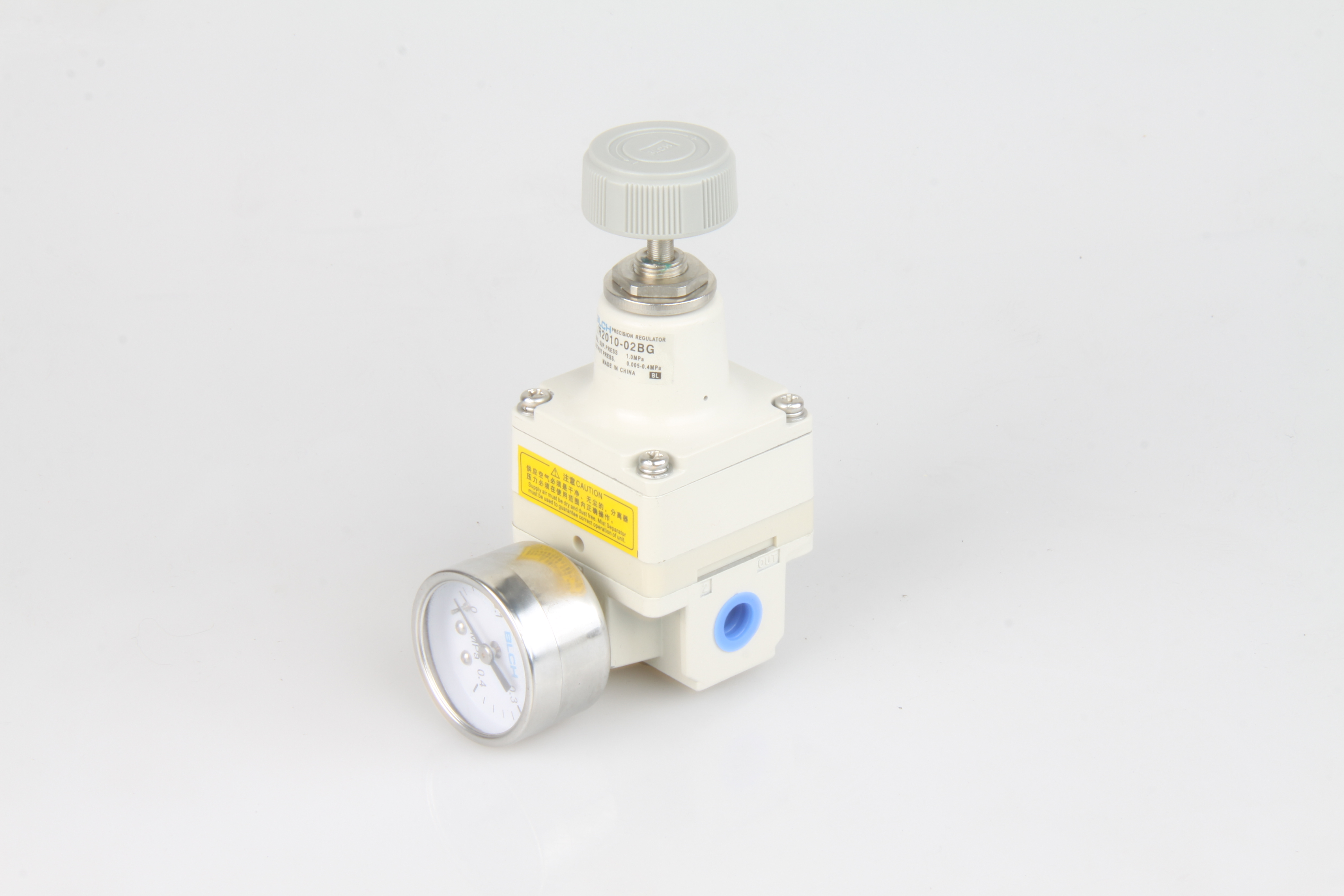

Features
• Small volume with light weight (only 300g)
• Current flow is 20% more than traditional one IR200 (the max is 100L/min)
• Exhaust amount is 5 times larger than IR200 series.
• Pressure setting is more accurate (the adjusted bolt distance is changed to 0.5mm by traditional 0.75)
• Convenient installment could be installed directly with bracket and present
• module combination of AF and AFM
• With standard panel5 s installment
• Separate the precursor vent and the main vent
Could be used in the pure room (special products)
order code
| Model | Max. Working pressure | Min. Working pressure (MPa) | Set pressure range(MPa) | Port size | Pressure gauge caliber |
| IR1000-01 | 1.0MPa | setting pressure +0.05 | 0.005-0.2 | 1/8″ | 1/8″ |
| IR1010-01 | 0.005-0.4 | ||||
| IR1020-01 | 0.005-0.8 | ||||
| IR2000-02 | 0.005-0.2 | 1/4″ | |||
| IR2010-02 | 0.005-0.4 | ||||
| IR2020-02 | 0.005-0.8 | ||||
| IR3000-02/03 | 0.01-0.2 | 1/4″,3/8″ | |||
| IR3010-02/03 | 0.01-0.4 | ||||
| IR3020-02/03 | 0.01-0.8 | ||||
| IR3000-04 | 0.01-0.2 | 1/2″ | |||
| IR3010-04 | 0.01-0.4 | ||||
| IR3020-04 | 0.01-0.8 |
Common Specification
| Sensitivity | Within 0.2% full degree | ||||
| Within 0.2% full degree | Within ± 5% full degree | ||||
| Rated flow | 1100L/min | ||||
| Gas loss | the largest is 4L/min under the pressure 1.0Mpa | ||||
| Environment current temperature | the largest is 3L/min under-5~+60℃ and the pressure 0.7 Mpa |
Overall dimension (mm)
 | Model | A | B | C |
| IR1000-01 | 36 | 93 | 36 | |
| IR1010-01 | ||||
| IR1020-01 | ||||
| IR2000-02 | 50 | 123 | 55 | |
| IR2010-02 | ||||
| IR2020-02 | ||||
| IR3000-02/03 | 66 | 147 | 66 | |
| IR3010-02/03 | ||||
| IR3020-02/03 | ||||
| IR3000-04 | ||||
| IR3010-04 | ||||
| IR3020-04 |
Note: the standard mounting position should be IN side on the left, OUT side on the right . pressure gauge and label in front and back, and mounting bracket back .
