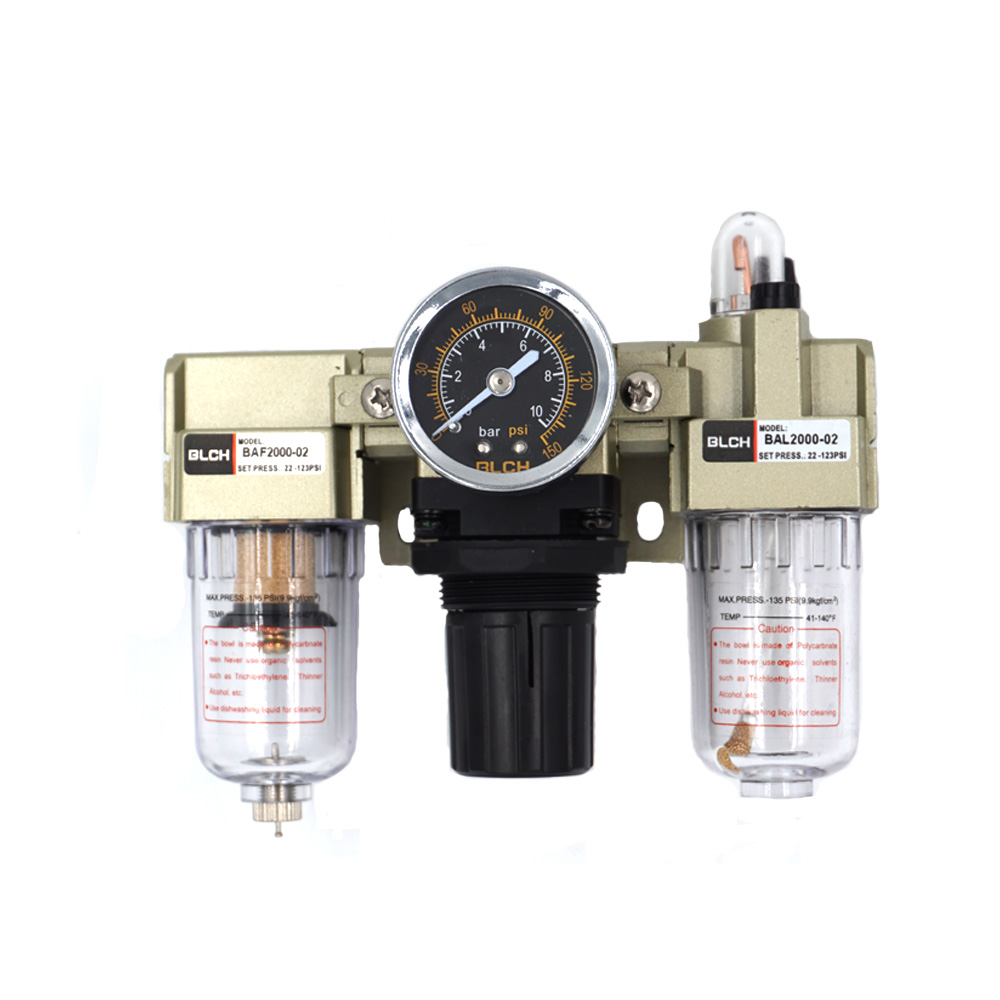

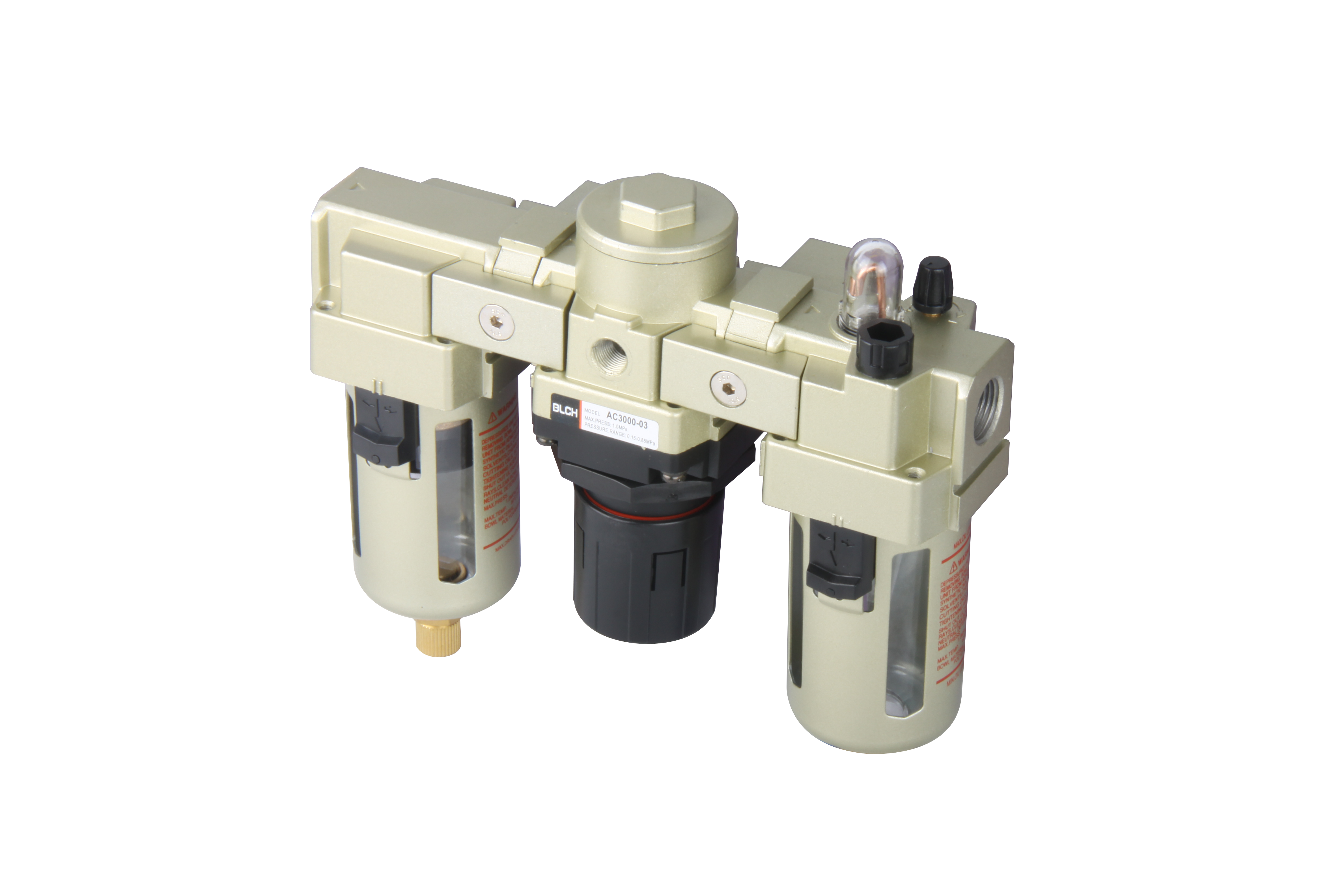

Air preparation AC series F.R.L combination

Short Description:

1.Classical design,durable ai control design

2.Engery saving and environmental protection with big low rate,safety and precision

3.Can work at the low pressure,smartness for on and off,good seal performance

4.Single action and double action types for your selection

5.Widely used in the food,machin,industry,abstersion,lanification,printing and other area


Product Detail

Product Tags

O1CN012OFHt01OEjbhJ8lKA_!!2200642471674

O1CN01VUAgVv1OEjbeZ3Kon_!!2200642471674

Ordering code

MODEL: AC3000-03D
A C 3000 _ 03 D
Series code Funcation Body size Port size Drain model
F. R.L 1000 M5: M5 Blank : Differential Pressure Drain
combination 2000 01: 1/8 & manual Drain ( 2000 size)
3000 02: 1/4 D: Automatic Drain
4000 03:3/8
5000 04: 1/2
06:3/4
10 : 1″

Specification

Model AC1000-M5 AC2000-01 AC2000-02 AC3000-02 AC3000-03 AC4000-03 AC4000-04 AC4000-06 AC5000-06 AC5000-10
AC1000-M5D AC2000-01D AC2000-02D AC3000-02D AC3000-03D AC4000-03D AC4000-04D AC4000-06D AC5000-06D AC5000-10D
Components Filter AF1000 AF2000 AF2000 AF3000 AF3000 AF4000 AF4000 AF4000 AF5000 AF5000
Regulator AR1000 AR2000 AR2000 AR3000 AR3000 AR4000 AR4000 AR4000 AR5000 AR5000
Lubricator AL1000 AL2000 AL2000 AL3000 AL3000 AL4000 AL4000 AL4000 AL5000 AL5000
Port size   Rc(G) M5 x 0.8 1/8″ 1/4″ 1/4″ 3/8″ 3/8″ 1/2″ 3/4″ 3/4″ 1″
Pressure gauge port size M5 x 0.8 1/8″ 1/8″ 1/8″ 1/8″ 1/4″ 1/4″ 1/4″ 1/4″ 1/4″
Pressure gauge Y20 Y40 Y40 Y40 Y40 Y50 Y50 Y50 Y50 Y50
Max. Flow L/min(ANR) 90 500 500 2000 2000 4000 4000 4500 5000 5000
Working pressure Range 0.15-0.7 Mpa 0.15-0.85 Mpa
Max pressure (Mpa) 1.0 MPa
Ambient  temperature  - 5~60℃
Filter accuracy 40um ( standard)   5um (option)
Recommended oil: Turbine NO.1 oil (ISOVG32)
Material of main part Body  Aluminum alloy
Bowl PC
Bowl guard  AC1000~ AC2000 : without  ,  AC3000~ AC5000:  With (Iron)

 Overall Dimension

AC series F.R.L combination Model A C B
AC1000-M5 87 87 41
AC2000-01/02 140 118 48
AC3000-02/03 180 142 68
AC4000-03/04 238 173 87
AC4000-06 255 190 85
AC5000-06/10 300 265 115
AC1000-M5D 87 104 41
AC2000-01/02D 140 145 48
AC3000-02/03D 180 194 68
AC4000-03/04D 238 205 87
AC4000-06D 255 210 85
AC5000-06/10D 300 286 115
